ÖZMAKSAN  Industrial Boiler

SAR Engineering Company is an Exclusively & Representative Distributors for OZMAKSAN Boilers - Global European – Turkish Company,  44th years in Design & Manufacture of different type Industrial Boilers   & Pressure Vessels, as per standard   DIN / CE / ASME Codes

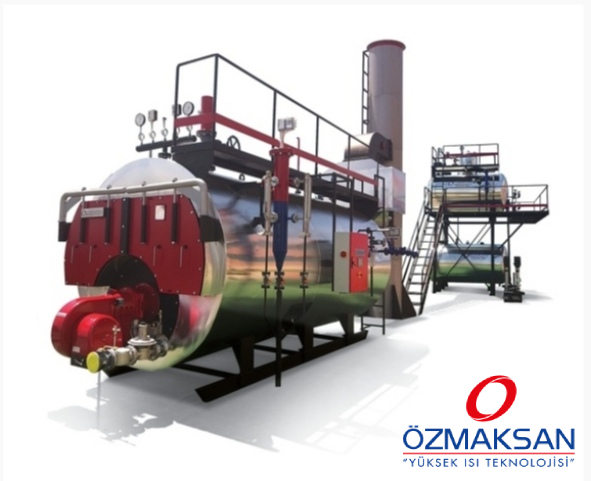

Steam Boilers

 Steam Boilers:

  • Boilers are Design & Manufacturing according to international Scotch type design, as per standard CE / ASME
  • related to 2014/68/EU, EN 12953
  • High Quality steel for the body and seamless special boiler tubes are used.
  • Combustion Chamber: 100 % Corrugated made of HII / DIN 17175
  • Fire Tubes: Special Seamless Boiler Pipes 8 appropriate to DIN EN17175 and DIN EN2448
  • Boiler & Tube Sheet (Mirrors ) Body: HII – Special Sheet Metal – DIN
  • Strength calculations according to PED 97/23 of EN 12953 European Norms.
  • Fittings are according to the German DIN System
  • High Efficiency: +90%
  • Welding Procedure: Approved according to EN-288 & Welder’s are certified by  “LOYD”
  • Wide Boilers Range Capacity: 500 – 30,000 Kg/hr
  • Wide Design Pressure up to 20 bar
  • The front is coated with special refractory material durable up to 1300 Co
  • Long Term economic usage,  low fuel consumption, very low heat losses.

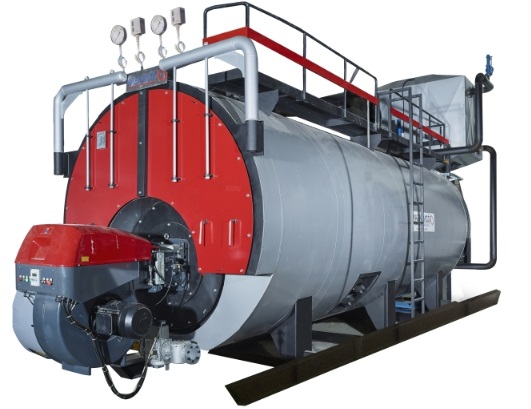

Super-Heated Boiler

 Super-Heated Boiler:

  • Scotch type, high pressure, liquid fuel & gas-fired, Three pass
  • Manufacturing with economizer
  • Related to: 2014/68/EU ve EN 12953
  • Max Working Temperature: 200 Co
  • Max Working Pressure: 24 bar
  • Boiler Pipe: EN 10216-1, DIN 2448, P235GH
  • Boiler Body Material: EN 10028, P295GH, P355GH, P335NH
  • Boiler Range : 100,000 – 13,500,000 Kcal/hr

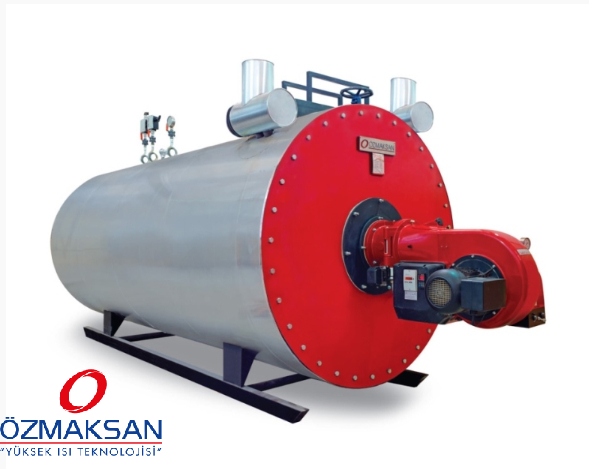

Thermal Oil Boiler

 Thermal Oil Boiler :

  • OZMASKAN Thermal Oil Boiler Temperature up to 350 Co
  • Boiler Steel: According To DIN 17155 Norm
  • Spiral Pipe / Coil: According to DN 17175, DN 2448 Norm
  • Refractory material Durable up to 1300 Co
  • Boilers Range Capacity : 500,000 – 5,000,000 Kcal/hr

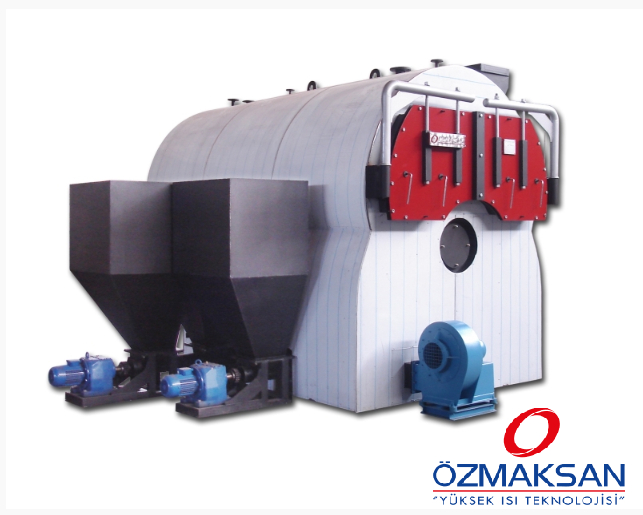

Solid Fuel Steam Boilers

Solid Fuel Steam  Boilers :

  • Design according to 97/23 EEC Pressure Vessels Directive of EN-12953  related to 2014/68/EU
  • Coupled Furnace, high-quality steel for the body, and seamless special boiler tubes are used
  • Automatic Loaded with stocker
  • Solid fuel: Prina, wood pieces, fruit shells, nut coal, wood pellets, etc.
  • Environment Friendly
  • Boilers Range Capacity : 1,000 – 4,500 Kg/hr



  Automatic Loading Unit for Solid Fuel Boiler :

  1. Storage Unit for Pellet
  2. Feeding Help zone
  3. Burning Box Inside the Furnace
  4. Reducer
  5. Burning Fan
  6. Chimney Suction Fan

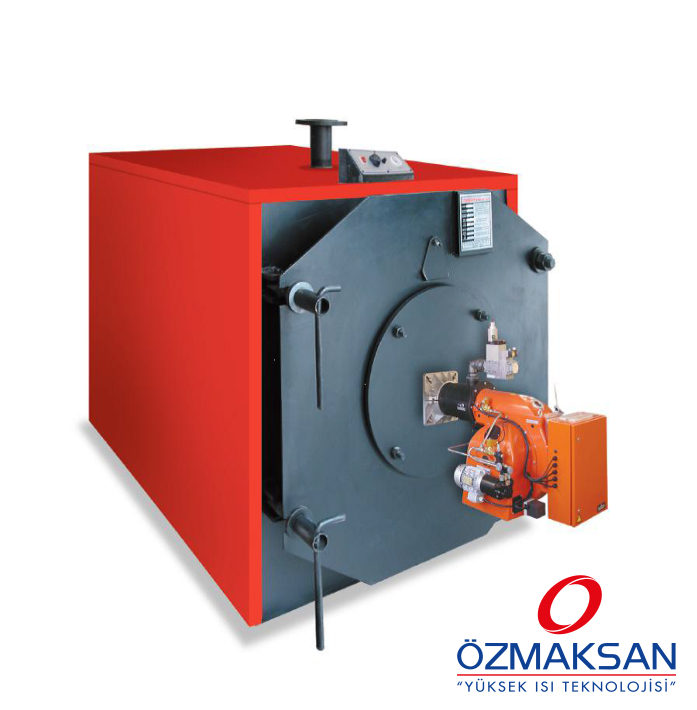

Hot Water Boiler

 Hot Water Boiler :

  • Liquid &  Gaseous Fuel   type
  • Design as Reverse Flame: Most Modern Model/ Reverse Flame
  • Design Norm: EN 303.1-2
  • Boilers Range Capacity : 80,000 – 2,000,000 Kcal/hr

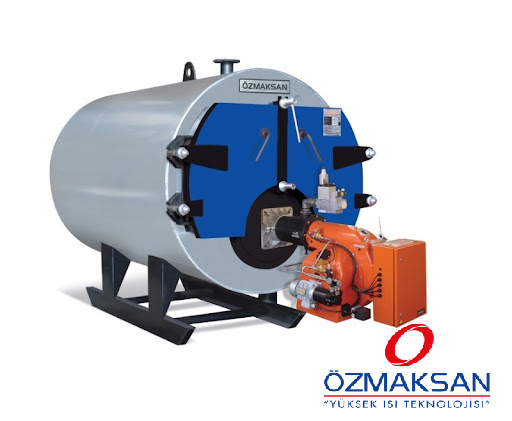

Hot Water Boiler ( Scotch Type )

Hot Water Boiler ( Scotch Type )
  • Liquid &  Gaseous Fuel  type
  • Design Norm: 92/42/AT, 90/396/AT, TS497  and  TS EN303 – 304
  • High Efficiency, low fuel consumption
  • Boilers Range Capacity : 100,000 – 5,000,000 Kcal/hr

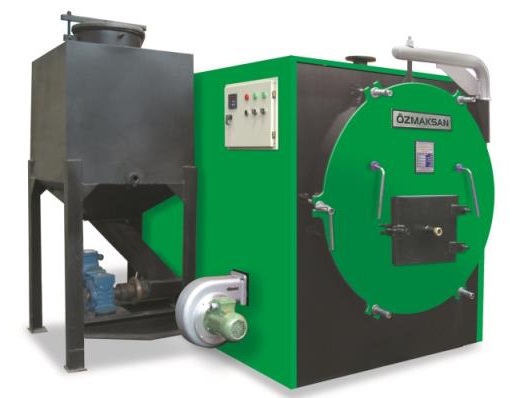

Solid Fuel Hot Water Boiler

Solid Fuel Hot Water Boiler:
  • Boilers are Design & Manufacture as per latest European Norms:  EN 303 – 5
  • Full Automatic Loaded
  • Environment Friendly
  • Fuel Options: Prina , Wood Pieces, Nut Coal, Wood Pellet, Fruit Shell
  • Boilers Range Capacity : 100,000 – 800,000 Kcal/hr

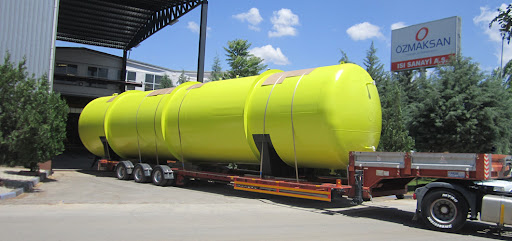

Storage Tank & Pressure Vessel

Storage Tank & Pressure Vessel :
  • Cylindrical type, Horizontal Shape
  • Design Standard: AD2000  EN 13445
  • The directive by 2014/68/EU
  • Operating Pressure: 25 bar
  • Material: P355 GH
  • Welding Control id did with NDT
  • Equipment having the CE Certificate
  • Welders Certificate “ LOYD “ to EN15216



  • Accumulating Tank: for Pressure Steam Storage Tank
  • N-Pentane Tank: GAS Storage Tank
  • Reactors: Energy Recovery Equipment for Petroleum Refineries
  • Degassers & Condensate Tank

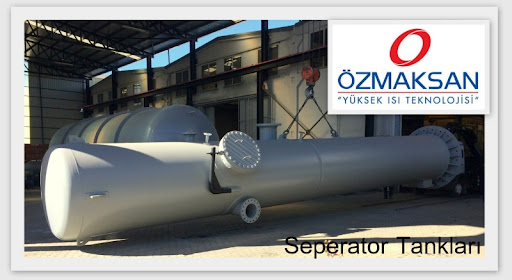

  • Separator
  • Chlorine Tank
